      How do I set-up Port Forwarding on my Rebel R1 Router?

      Not to fear! This can be achieved via the Plume Home mobile app. Please note, you are not able to assign ports 22456:32456, as these are reserved for VoIP. For a full list of unavailable ports, please scroll to the bottom of this article.

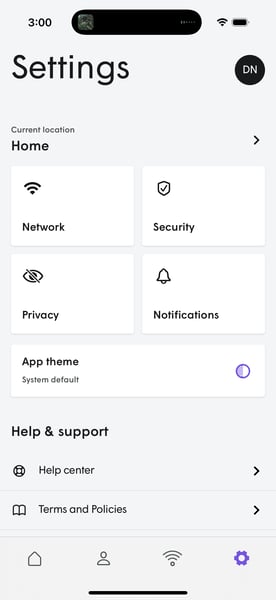

      First, click Settings in the bottom left of the screen. You will see the below:



      Port Forwarding 1

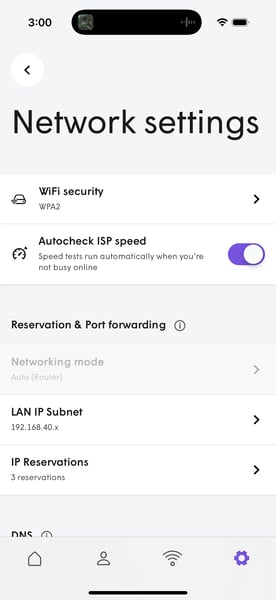

      Then, click "Network" under "Home". You will get to the Network Settings page:

      Port Forwarding 2

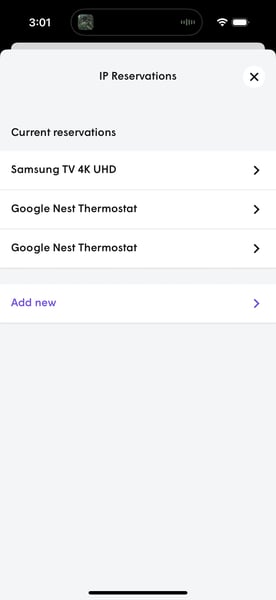

      Then, click "IP Reservations" and you will get to this screen:



      Port Forwarding 3

      Then, click "Add new", select the device you are looking to add, then click "Add a Port":



      Port Forwarding 4

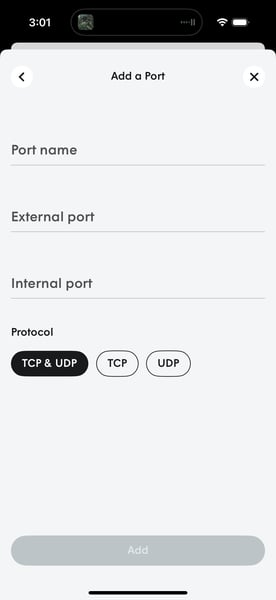

      Finally, add your Port Name, assign the External and Internal Ports, select the protocol, and click "Add".



      Port Forwarding 5

      That's it! Your device now has its assigned IP address and the port forwarding rule is in place. The rule will remain active until you modify or delete it.

      Here is the full list of Ports that cannot be Reserved:

      tcp 0 0 0.0.0.0:53 0.0.0.0:* LISTEN 8872/dnsmasq
      tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 4317/sshd
      tcp 0 0 0.0.0.0:5431 0.0.0.0:* LISTEN 8842/upnp
      tcp 0 0 0.0.0.0:40824 0.0.0.0:* LISTEN 4040/agent
      tcp 0 0 0.0.0.0:7681 0.0.0.0:* LISTEN 4319/websockd
      tcp 0 0 0.0.0.0:7682 0.0.0.0:* LISTEN 2646/bbcd
      tcp 0 0 :::53 :::* LISTEN 8872/dnsmasq
      tcp 0 0 :::21 :::* LISTEN 2966/smd
      tcp 0 0 :::22 :::* LISTEN 4317/sshd
      tcp 0 0 :::443 :::* LISTEN 2966/smd
      tcp 0 0 :::80 :::* LISTEN 2966/smd
      udp 0 0 0.0.0.0:36383 0.0.0.0:* 1568/vtp_syslogd
      udp 0 0 0.0.0.0:24100 0.0.0.0:* 1551/vtp_logic
      udp 0 0 0.0.0.0:37425 0.0.0.0:* 8872/dnsmasq
      udp 0 0 0.0.0.0:52849 0.0.0.0:* 8872/dnsmasq
      udp 0 0 0.0.0.0:35508 0.0.0.0:* 8872/dnsmasq
      udp 0 0 0.0.0.0:24300 0.0.0.0:* 3459/ggsip
      udp 0 0 0.0.0.0:35611 0.0.0.0:* 1568/vtp_syslogd
      udp 0 0 0.0.0.0:1900 0.0.0.0:* 8842/upnp
      udp 0 0 0.0.0.0:1900 0.0.0.0:* 6284/afcmd
      udp 0 0 0.0.0.0:1900 0.0.0.0:* 6046/hostapd
      udp 0 0 0.0.0.0:1900 0.0.0.0:* 5884/hostapd
      udp 0 0 0.0.0.0:37784 0.0.0.0:* 8872/dnsmasq
      udp 0 0 0.0.0.0:24500 0.0.0.0:* 1550/vtp_pc
      udp 0 0 0.0.0.0:24501 0.0.0.0:* 1550/vtp_pc
      udp 0 0 0.0.0.0:5060 0.0.0.0:* 3459/ggsip
      udp 0 0 0.0.0.0:21458 0.0.0.0:* 2742/vodsl
      udp 0 0 0.0.0.0:53 0.0.0.0:* 8872/dnsmasq
      udp 0 0 0.0.0.0:67 0.0.0.0:* 8848/dhcpd
      udp 0 0 0.0.0.0:67 0.0.0.0:* 8848/dhcpd
      udp 0 0 0.0.0.0:67 0.0.0.0:* 8848/dhcpd
      udp 0 0 0.0.0.0:58738 0.0.0.0:* 8872/dnsmasq
      udp 0 0 :::53 :::* 8872/dnsmasq
      udp 0 0 :::69 :::* 2966/smd


      Get in touch with our Support team if you need additional assistance.
